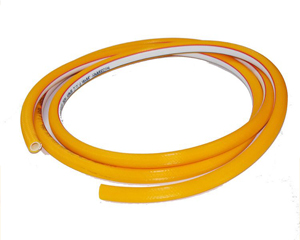

PVC High Pressure Agricultural Spray Hose for Sprayer Chemical Spraying

Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDE
Model Number:
LDA-50
Material:
PVC
Specification:
5/16'' to 1'' or as customized
Length:
50m/roll, 100m/roll or as customized
Thickness:
2mm to 3mm or as customized
Standard:
International Standard
Processing Service:
Moulding, Cutting, Customized, OEM, ODM
Color:
Yellow/Red/Blue or as customized
Inner Diameter:
8mm/10mm/mm/16mm/25mm or as customized
Application:
Agriculture, Industry, Mining etc
Feature:
Anti-UV, Sun-block, High Pressure
Raw material:
Non-toxic PVC and fiber
Working pressure:
20 bar to 26 bar
Bursting pressure:
60 bar to 78 bar
Working temperature:
-10 degrees to 65 degrees
Advantage:
Anti-acid bases, aging resistance
Used:
For spraying agricultural chemicals for farm villages, orchards


Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • LD-SPH

  • LIDE

  • 3917390000

  • As customized/Optional

Product Description

1/4" - 1" Size Explosion Resistant Soft PVC High Pressure Agricultural Spray Hose Pipe

Orange Yellow Black Flex Plastic PVC Spray Hose Pipe with Anti Freeze
High Pressure 60 Bar Spray Hose 8.5mm PVC Spray Hose for Pesticide

1/4"-1" Three Layers Five Layers PVC High Pressure Spray Hose
PVC Double Reinforced Spray Hose 5 layers 8.5mm W. P. 40bar Pesticide Hose
8mm 10mm Flying flex yellow PVC Power Spray Hose
pvc high pressure sprayer hose / agriculture water spray pipe tube with fittings
Yellow High Pressure PVC Spray Hose for Agricultural Spraying Pesticide
Name
PVC Spray Hose
Material
high quality PVC and polyester thread
Size
See our data sheet or be customized
Color
Various for choose or be customized
Working Pressure
20 bar to 26 bar
Packing
50m/roll, 100m each roll or as customized
Item
1/4" - 1" Size Explosion Resistant Soft PVC High Pressure Agricultural Spray Hose Pipe
Place of Origin
China

Weifang City, Shandong Province
Brand Name
LIDE
Model Number
LDA-50
Material
PVC and high quality fiber
Specification
5/16'' to 1'' or as customized
Length
50m/roll, 100m/roll or as customized
Thickness
2mm to 3mm or as customized
Standard
International Standard
Processing Service
Moulding, Cutting, Customized, OEM, ODM
Color
White/Yellow/Red/Blue/Green or as customized
Inner Diameter
8mm/8.5mm/10mm/13mm/16mm/19mm/25mm or as customized
Application
Agriculture, Construction, Industry, Mining etc
Feature
Anti-UV, Sun-block, High Pressure
Raw material
Non-toxic PVC and fiber
Working pressure
20 bar to 26 bar
30Bursting pressure
6 bar to 78 bar
Working temperature
-10 degrees to 65 degrees
Advantage
Anti-acid bases, aging resistance
Inner Diameter
Outer Diameter
Weight
W.P.(at 23℃)
Std Length
inch
mm
inch
mm
kg/m
bar
psi
m
ft
1/4
6.5
0.452
11.5
0.096
30
450
100
300
6.5
0.493
12.5
0.121
50
750
100
300
5/16
8.5
0.531
13.5
0.117
30
450
100
300
8.5
0.571
14.5
0.146
50
750
100
300
3/8
10
0.629
16
0.166
30
450
100
300
10
0.700
17
0.200
50
750
100
300
1/2
13
0.787
20
0.250
25
375
100
300
13
0.827
21
0.290
50
750
100
300
5/8
16
0.944
24
0.340
20
300
100
300
16
0.985
25
0.391
40
600
100
300
3/4
19
1.102
28
0.450
20
300
100
300
19
1.142
29
0.509
30
450
100
300
1
25
1.339
34
0.563
20
300
100
300
