| Quantity: | |
|---|---|
LDA-50
LIDE
As customized/Optional
Product Description
Product Description
Manufacturers wholesale three rubber four line 8.5*14 agricultural pesticide tube high pressure spray tube PVC hose
1/4" - 1" Size Explosion Resistant Soft PVC High Pressure Agricultural Spray Hose Pipe
Orange Yellow Black Flex Plastic PVC Spray Hose Pipe with Anti Freeze
High Pressure 60 Bar Spray Hose 8.5mm PVC Spray Hose for Pesticide
1/4"-1" Three Layers Five Layers PVC High Pressure Spray Hose
PVC Double Reinforced Spray Hose 5 layers 8.5mm W. P. 40bar Pesticide Hose
8mm 10mm Flying flex yellow PVC Power Spray Hose
pvc high pressure sprayer hose / agriculture water spray pipe tube with fittings
Yellow High Pressure PVC Spray Hose for Agricultural Spraying Pesticide
| Item | 1/4" - 1" Size Explosion Resistant Soft PVC High Pressure Agricultural Spray Hose Pipe |
| Place of Origin | China |
| Weifang City, Shandong Province | |
| Brand Name | LIDE |
| Model Number | LDA-50 |
| Material | PVC and high quality fiber |
| Specification | 5/16'' to 1'' or as customized |
| Length | 50m/roll, 100m/roll or as customized |
| Thickness | 2mm to 3mm or as customized |
| Standard | International Standard |
| Processing Service | Moulding, Cutting, Customized, OEM, ODM |
| Color | White/Yellow/Red/Blue/Green or as customized |
| Inner Diameter | 8mm/8.5mm/10mm/13mm/16mm/19mm/25mm or as customized |
| Application | Agriculture, Construction, Industry, Mining etc |
| Feature | Anti-UV, Sun-block, High Pressure |
| Raw material | Non-toxic PVC and fiber |
| Working pressure | 20 bar to 26 bar |
| 30Bursting pressure | 6 bar to 78 bar |
| Working temperature | -10 degrees to 65 degrees |
| Advantage | Anti-acid bases, aging resistance |
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6.5 | 0.452 | 11.5 | 0.096 | 30 | 450 | 100 | 300 |
| 6.5 | 0.493 | 12.5 | 0.121 | 50 | 750 | 100 | 300 | |
| 5/16 | 8.5 | 0.531 | 13.5 | 0.117 | 30 | 450 | 100 | 300 |
| 8.5 | 0.571 | 14.5 | 0.146 | 50 | 750 | 100 | 300 | |
| 3/8 | 10 | 0.629 | 16 | 0.166 | 30 | 450 | 100 | 300 |
| 10 | 0.700 | 17 | 0.200 | 50 | 750 | 100 | 300 | |
| 1/2 | 13 | 0.787 | 20 | 0.250 | 25 | 375 | 100 | 300 |
| 13 | 0.827 | 21 | 0.290 | 50 | 750 | 100 | 300 | |
| 5/8 | 16 | 0.944 | 24 | 0.340 | 20 | 300 | 100 | 300 |
| 16 | 0.985 | 25 | 0.391 | 40 | 600 | 100 | 300 | |
| 3/4 | 19 | 1.102 | 28 | 0.450 | 20 | 300 | 100 | 300 |
| 19 | 1.142 | 29 | 0.509 | 30 | 450 | 100 | 300 | |
| 1 | 25 | 1.339 | 34 | 0.563 | 20 | 300 | 100 | 300 |

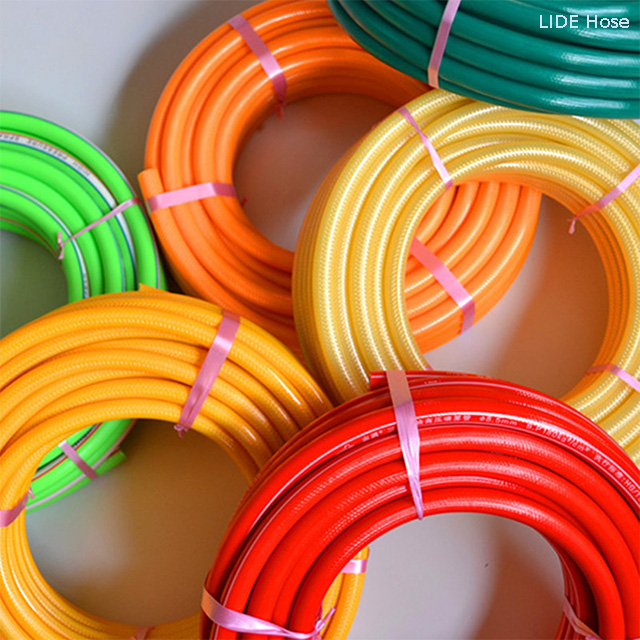

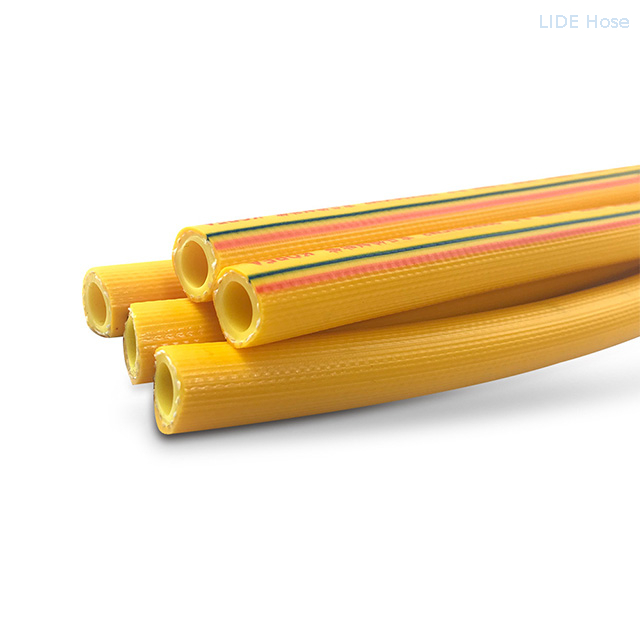

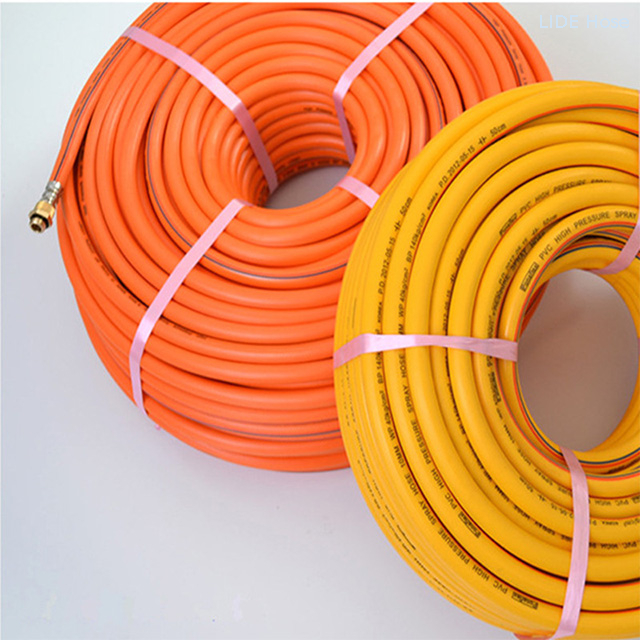

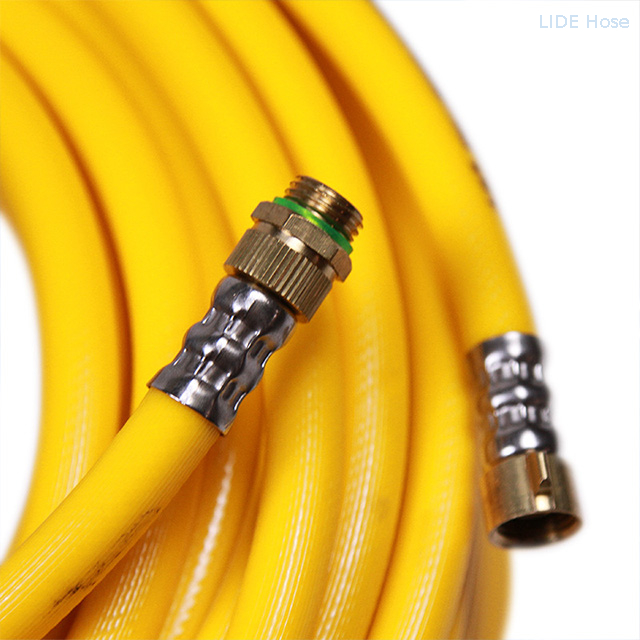

Details Images

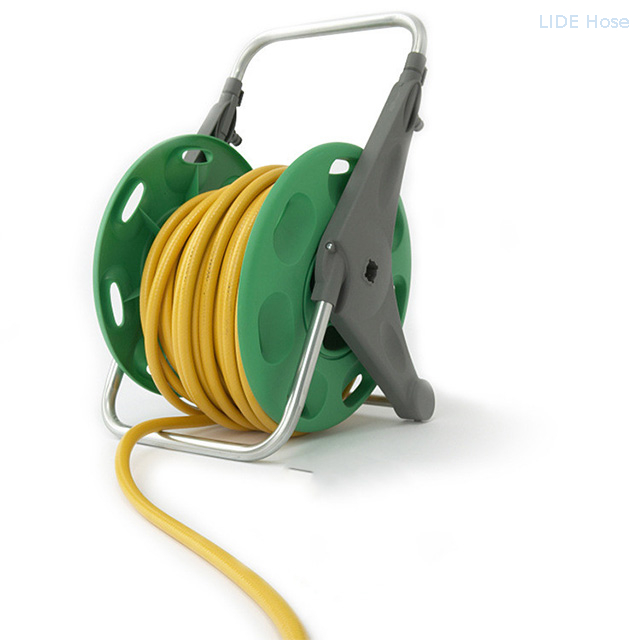

Application
Raw Material for the PVC Hose
1. The inner layer:
High polymer pressure resistant layer, high quality PVC wear-resistant material, anti UV radiation, prevent hose aging.
Improve service life, not easy to be corroded, explosion-proof, folding and pressure resistant
2. Middle layer:
High strength and pressure resistant polyester mixed braided layer, new braided process, using the best quality polyester mixed braided by the best manufacturer in China
Make the water pipe stretching ductility better, folding resistance, pressure resistance, anti-freezing, anti-explosion
The middle layer can be 1 or 2 layers
3. The outer layer:
High quality PVC wear-resistant material, anti UV radiation, prevent hose aging
Improve service life, not easy to be corroded, explosion-proof, folding and pressure resistant
Hose layer type:
Three layers of PVC and one layer of line
Three-layer PVC two-layer line
Three layers of PVC four layers of wire
Packing & Delivery
50m/roll, 100m/roll.
Or the package can be packed as customized.
Delivery can be by sea, air, courier or railway, etc.
