| Quantity: | |
|---|---|
LD-CH
LIDE
3917390000
As customized/Optional
Product Description

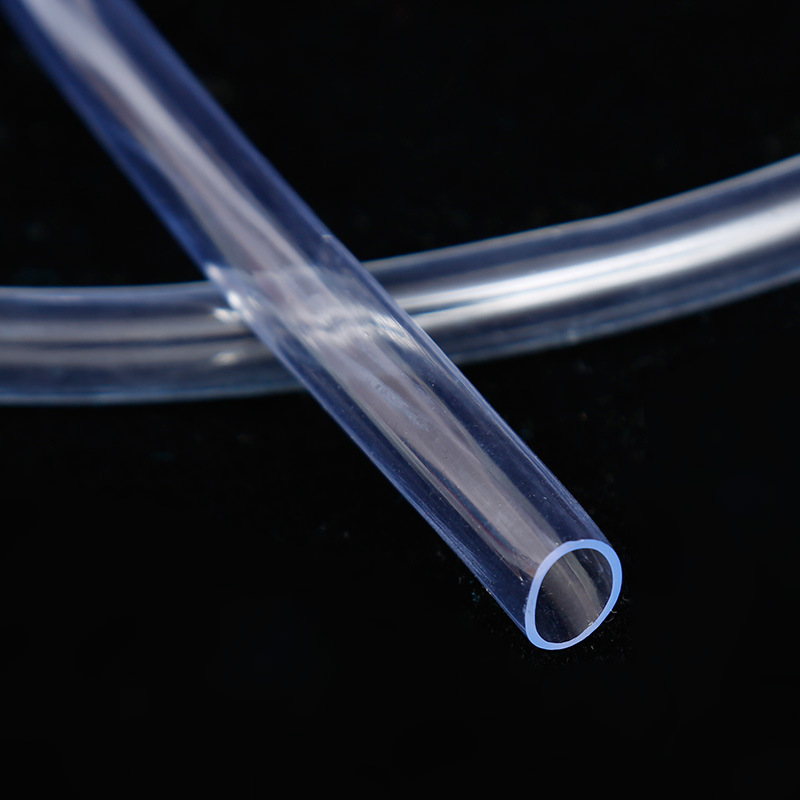

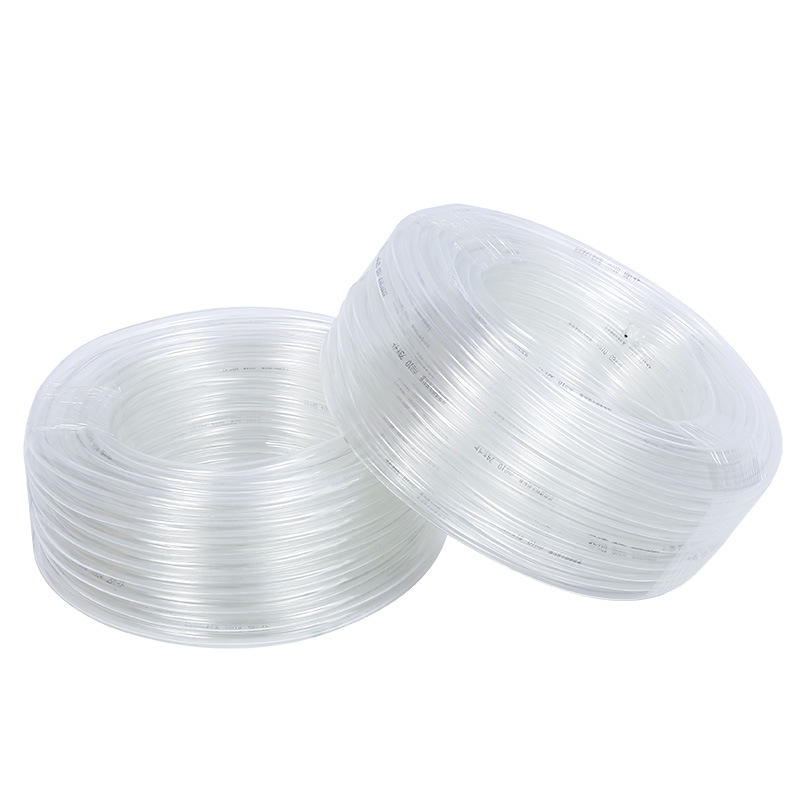

Non Toxic PVC Clear Hose is also PVC clear hose, PVC water level hose, PVC transparent hose, PVC clear tube, vinyl tubing, PVC single layer hose, clear unreinforced hose, etc. Which is designed for low pressure delivery in multiple applications.
Application:
Suitable for low pressure transfer of various Fluids and air, such as fuel, water, light chemicals, oxygen, gas for watering systems, peristaltic pumps, electrical and thermal insulation, analytical systems in plant equipment, laboratories, watering system and many other low pressure industry applications.
Features:
non toxic, clear PVC wall allows full visual flow of materials, weathering resistant, smooth tube for resistance to collection or blockage, easily characterized by a round, rectangular or square shape, different colors available, different sizes to fit standard commercial barbed fittings, we can also make the hose with non-phthalate formulations.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23ºC) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 3 | 0.196 | 5 | 0.017 | 4 | 60 | 100 | 300 |
| 1/6 | 4 | 0.236 | 6 | 0.02 | 4 | 60 | 100 | 300 |
| 1/5 | 5 | 0.314 | 8 | 0.04 | 4 | 60 | 100 | 300 |
| 1/4 | 6 | 0.354 | 9 | 0.047 | 4 | 60 | 100 | 300 |
| 5/16 | 8 | 0.433 | 11 | 0.059 | 4 | 60 | 100 | 300 |
| 3/8 | 10 | 0.511 | 13 | 0.071 | 4 | 60 | 100 | 300 |
| 1/2 | 12 | 0.59 | 15 | 0.08 | 3 | 45 | 100 | 300 |
| 5/8 | 15 | 0.708 | 18 | 0.1 | 3 | 45 | 50 | 150 |
| 3/4 | 19 | 0.866 | 22 | 0.13 | 3 | 45 | 50 | 150 |
| 1 | 25 | 1.181 | 30 | 0.28 | 2 | 30 | 50 | 150 |
| 1-1/4 | 32 | 1.496 | 38 | 0.43 | 2 | 30 | 30 | 90 |
| 1-1/2 | 38 | 1.732 | 44 | 0.52 | 2 | 30 | 30 | 90 |
| 2 | 50 | 2.283 | 58 | 0.9 | 2 | 30 | 30 | 90 |

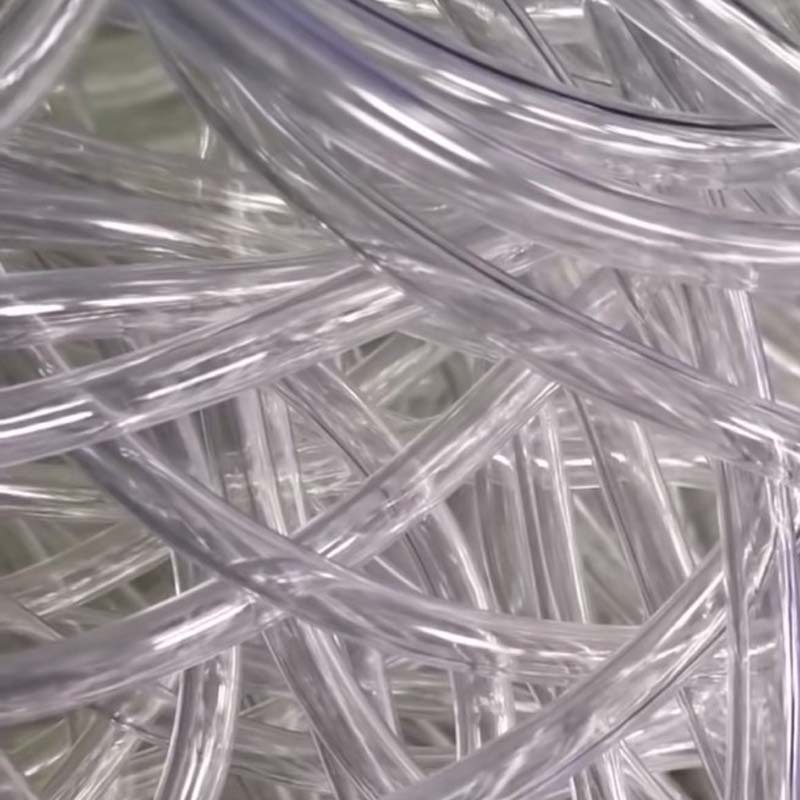

Product Details:
