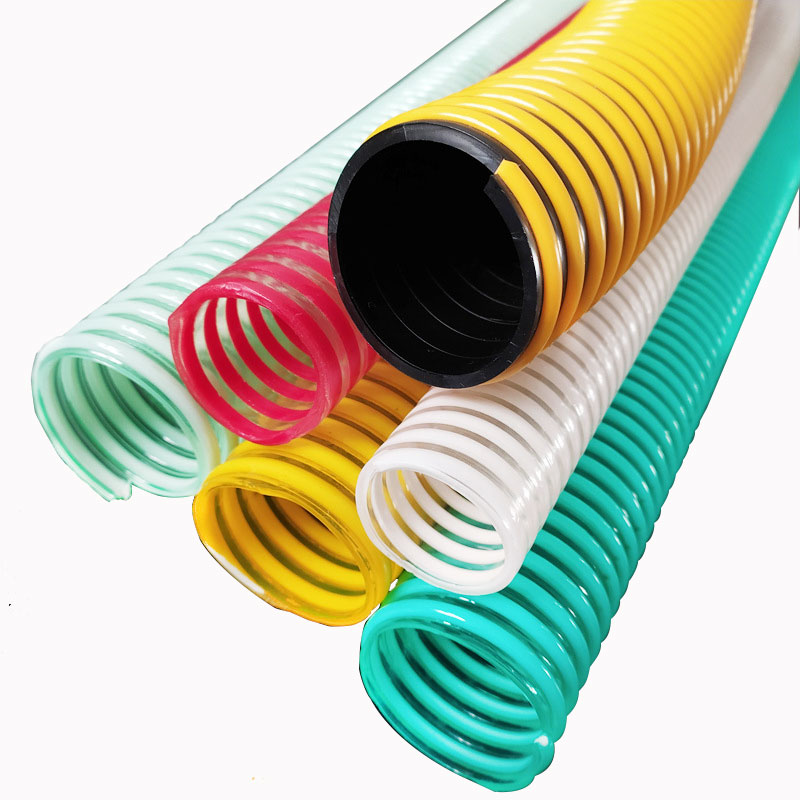

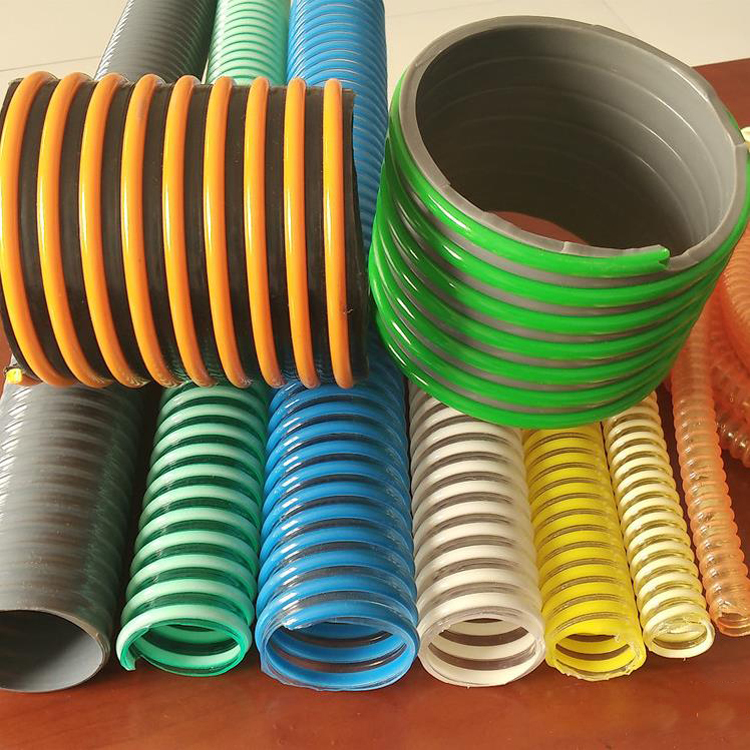

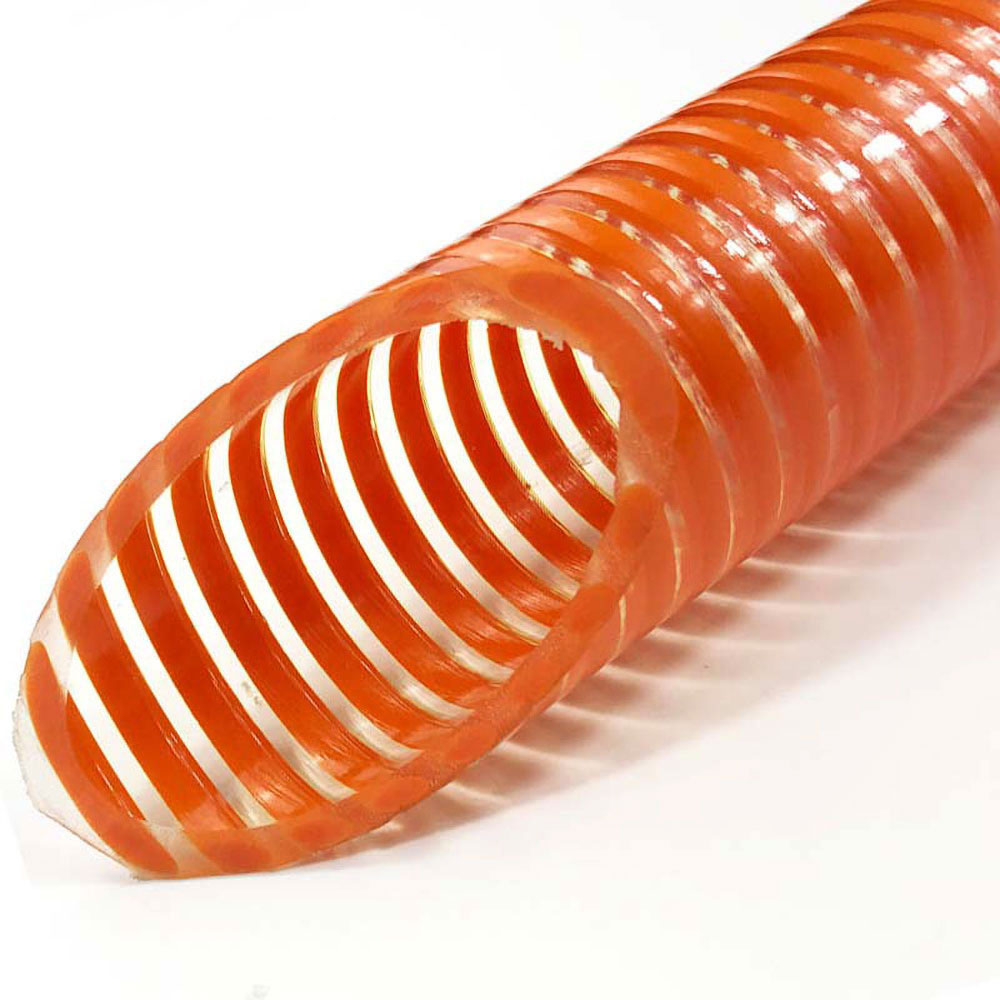

PVC Clear Corrugated Helix Water Suction Pool Hose which is also called helix reinforced suction hose, corrugated suction hose, clear water suction hose, pool suction hose and pump suction hose etc. Which is high quality PVC suction hose designed for a wide variety of suction or transfer applications.
Application:
Widely used throughout industry in both positive and negative pressure applications, ideally for conveying and suction of water, oil, powder, granules in pump industries, constructions, mining industries, chemical factories and many other industry applications.
Features:
Excellent flexibility, crush and abrasion resistant, smooth tube for less friction loss, smooth cover allows easy dragging, weathering resistant, clear to have full visual flow of materials, corrosion resistant to light chemicals, various lengths available and can be supplied with different couplings and clamps.
Temperature Range:-5℃ to +65℃
| Quantity: | |
|---|---|
LD-SH
LIDE
3917390000
As customized/Optional
Product Description

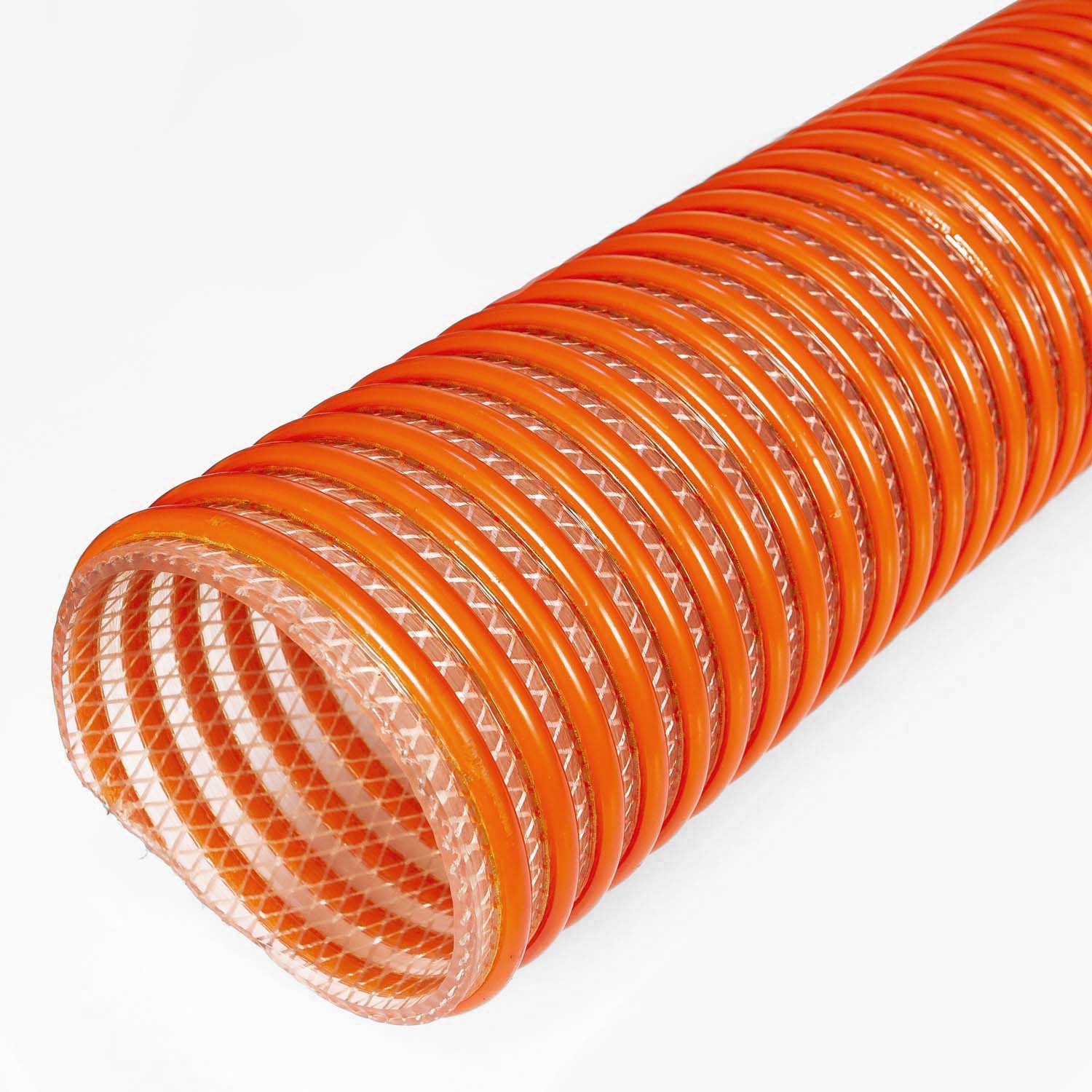

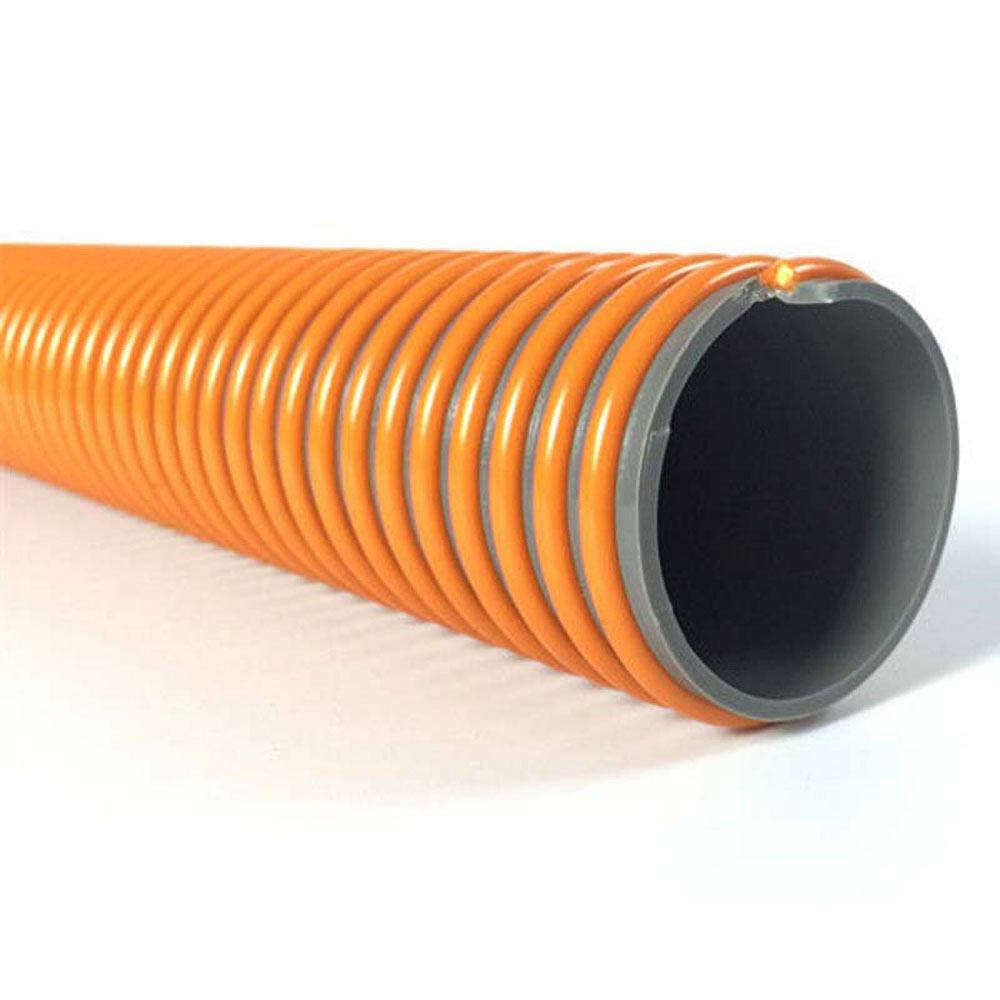

Heavy Duty Suction Discharge Hose
Specification
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 3/4 | 19 | 23 | 6 | 90 | 18 | 270 | 230 | 50 |
| 1 | 25 | 29 | 6 | 90 | 18 | 270 | 290 | 50 |
| 1-1/4 | 32 | 38 | 6 | 90 | 18 | 270 | 400 | 50 |
| 1-1/2 | 38 | 46 | 6 | 90 | 18 | 270 | 650 | 50 |
| 2 | 50 | 56 | 5 | 75 | 15 | 225 | 700 | 50 |
| 2-1/2 | 63 | 71 | 4 | 60 | 12 | 180 | 1170 | 30 |
| 3 | 75 | 83 | 3 | 45 | 9 | 135 | 1300 | 30 |
| 4 | 100 | 110 | 3 | 45 | 9 | 135 | 2300 | 30 |
| 5 | 125 | 137 | 3 | 45 | 9 | 135 | 3300 | 30 |
| 6 | 152 | 166 | 2 | 30 | 6 | 90 | 5500 | 20 |
| 8 | 200 | 214 | 2 | 30 | 6 | 90 | 6300 | 10 |
| 10 | 254 | 270 | 2 | 30 | 6 | 90 | 10000 | 10 |
| 12 | 305 | 329 | 2 | 30 | 6 | 90 | 18000 | 10 |
| 14 | 358 | 382 | 2 | 30 | 6 | 90 | 20000 | 10 |
| 16 | 408 | 432 | 2 | 30 | 6 | 90 | 23000 | 10 |
Application
For suction and delivery of liquids, powder, granules in industry, agriculture and construction.
Features
Flexible PVC with rigid PVC spiral reinforcement, arasion and chemical resistant, impact and crush resistant, smooth inner construction for unrestricted flow of materials.
