Product Description
Product Description
PVC Anti-static Wire Reinforced Hose
Anti-Static PVC Spiral Steel Wire Reinforced Hose for Indutrial Engineering
Inserted the copper wire into the hoses which can avoid the block of the flowing in the hoses due to the static.
Purpose
Anti static, can be used in electrostatic places, such as buildings, factories, coal mines, oil depots, etc., for all kinds of gas, liquid, powder, dust and other suction row.
Characteristic
The copper wire is inserted into the hose to prevent the tube blockage caused by static electricity, so as to avoid the electric shock or the current shock. Keep the original shape.
Applicable temperature
-25 centigrade ~65 C
Product range
Inner diameter 19mm~102mm
Prev: PPO elastomer single tube and composite pipe (steel wire, fiber)
Next: PVC steel wire high strength polyester fiber composite reinforced hose
| Name | PVC Steel Wire Hose |
| Material | high quality PVC and polyester thread |
| Size | See our data sheet or be customized |
| Color | Various for choose or be customized |
| Working Pressure | 3 bar to 11 bar |
| Packing | 100m each roll or as customized |
| Application | Suction water, sand, oil, dust particles, etc., used in industry, agriculture, chemical, garden and other industries. |
| Feature | PVC hose with embedded steel wire |

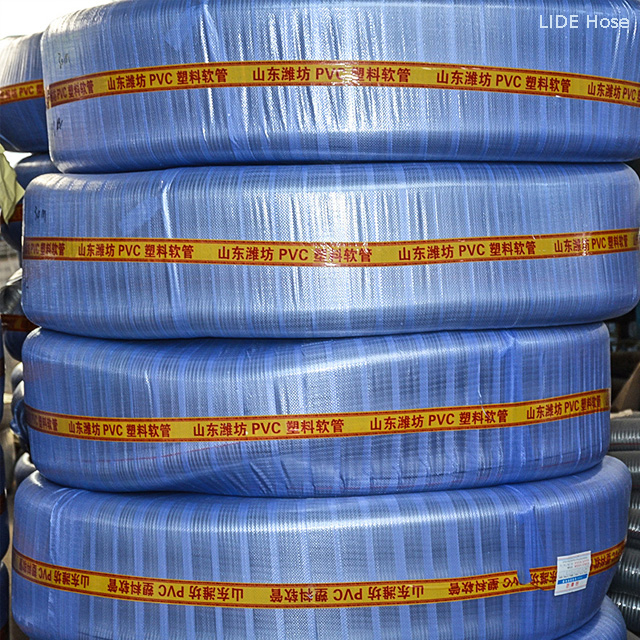

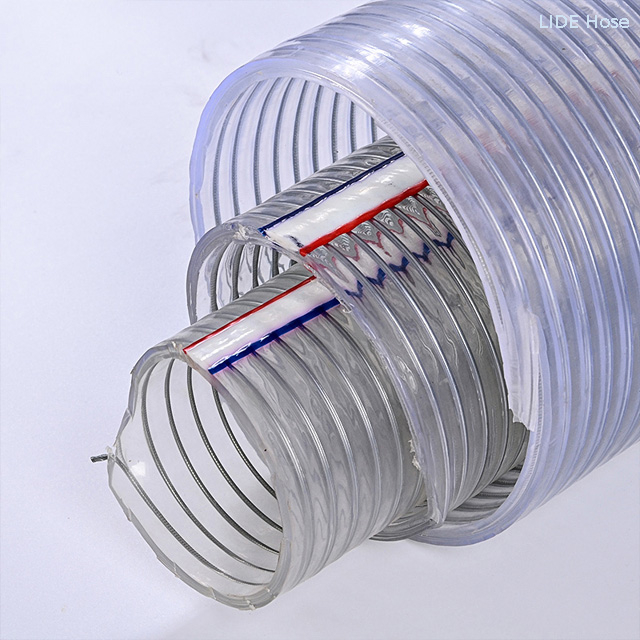

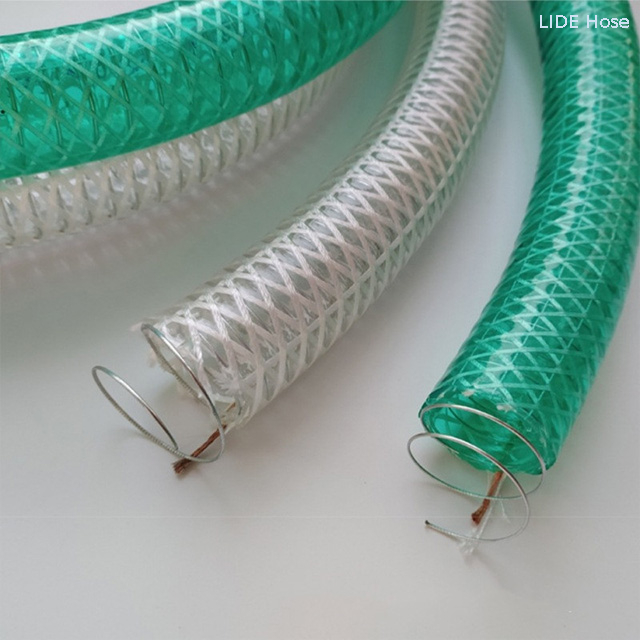

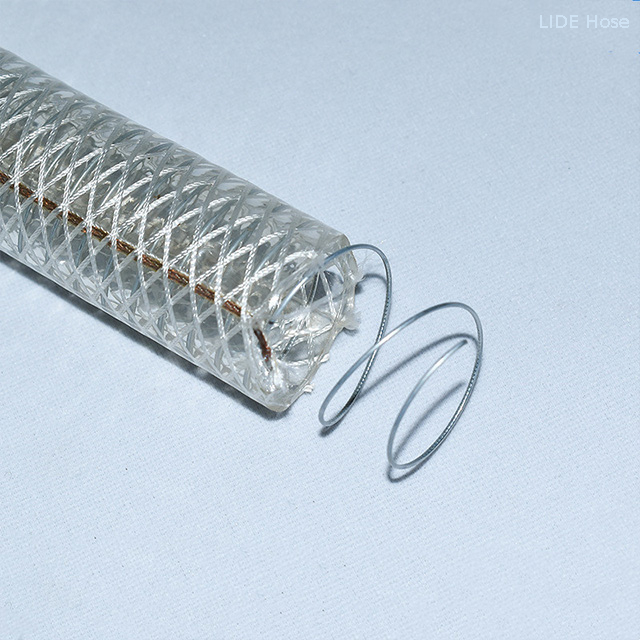

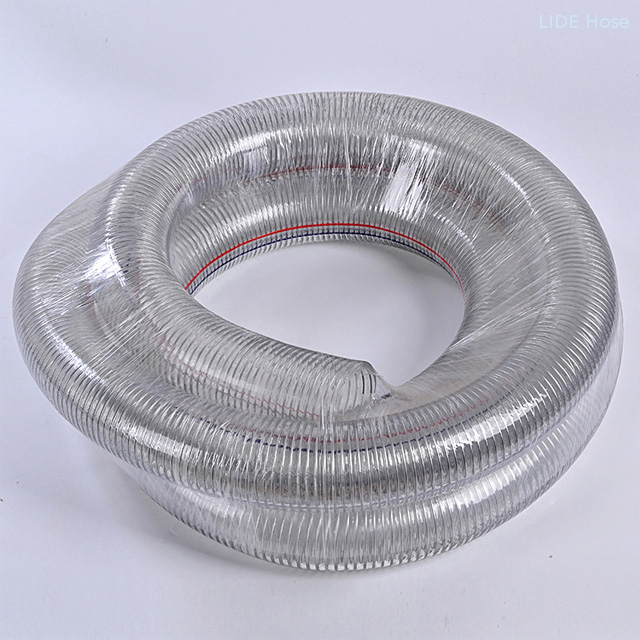

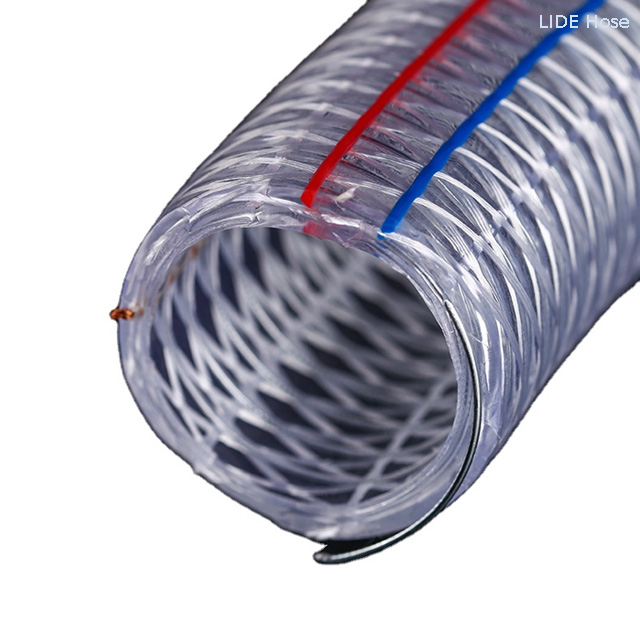

Product real shot display：
PVC Steel Wire Spring Hose is made from 100% pure PVC compound with galvanized steel wire reinforcement to make it negative pressure resistance. This is a new type of reinforced PVC hose, an ideal substitute for other rubber.
PVC Steel Wire Hose is chemical, ozone, atmospheric and flame resistant as well as self extinguishing.
The applications of this hose include all vacuum lines, food and beverage dispensing.
Its one piece construction is the result of a unique process that embeds the spring wire reinforcement within the walls of the hose, resulting in a homogenous mass.
There are no separate layers or laminated plies. As a result chemicals and gases cannot attack the metal spring wire and the hose retains its strong anti-collapsible features under both high pressure and low vacuum applications.
This hose has the added advantage of being transparent so that the user can see what is going on inside it.
PVC Steel Wire Hose Construction:
Tube and cover: transparent PVC
Reinforcement: steel wire spiral and fiber
Application
The PVC steel wire spring hose hose is widely used for suction and discharge of water, oil and powdery articles in the industries, agriculture, engineering, foodstuffs and sanitation lines, the hose used for foodstuffs is made of special food grade pvc.
It is non-toxic,light,without odor and transparent.
The food grade PVC steel wire spring hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods.
We can also insert the cooper wire into hose.This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.
● Industry and Building use
● Sewage
● Suction and delivery of slurry
● Transfer of chemical products, food products, liquids, powders and dust.
Product Paramenters
Our Advantages
PVC Steel Wire Hose Characteristics:
●Lightweight, flexible with small bending radius.
●Durable against the external impact,chemical and climate
●Transparent, easy to check the contents.
●Anti-UV, anti-aginglong working life
PVC Steel Wire Hose Temperature: -10℃(-50℉) to 65℃(+150℉)
Packing & Delivery
Packing: 30m/roll, 40m/roll, 50m/roll, 100m/roll or as your request.
Delivery: By sea, railway or air.
Various fittings for hose can be supplied.
